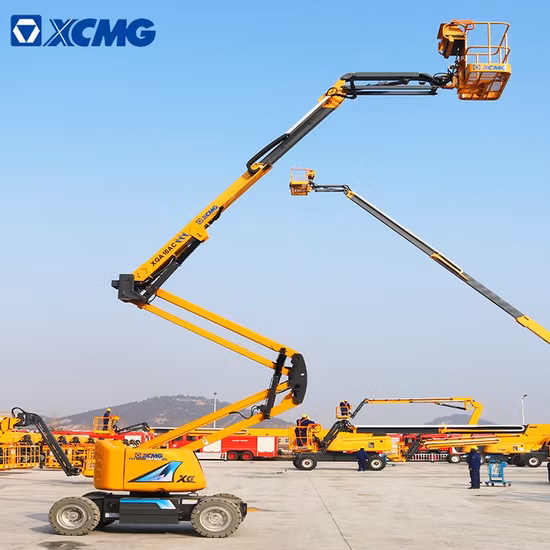

XCMG 16m Articulated Boom Lift Xga16AC Electric Aerial Work Platform

XCMG 16m Articulated Boom Lift Xga16AC Electric Aerial Work Platform

Overview Product Description XCMG 16m Articulated Boom Lift Xga16AC Electric Aerial Work PlatformElectric articulated mo;
Overview
Basic Info.
Model NO. Xga16AC
Driven Type Electrical
Running Mode Moving
Certification ISO 9001
Ground Clearance 0.21m
Rated Working Height 15.5m
Max. Traveling Speed 5.2km/H
Max. Platform Height 13.8 M
Transport Package Comply with Export Packaging Requirements
Specification 6.42*1.75*2 m
Trademark XCMG
Origin Xuzhou, Jiangsu, China
HS Code 87059091
Production Capacity 10000 Units/Year
Product Description

Product Description


XCMG 16m Articulated Boom Lift Xga16AC Electric Aerial Work PlatformElectric articulated mobile elevating work platform are developed by XCMG, compact structures and vehicle body 1.75m wide. Intelligent and perfect control system features the humanized layout, the maintenance-free design and easy use and maintenance, providing the multiple options and comprehensive safety.Advantages and highlights:* Σ-shaped boom combine and zero tail swing design make it more productive.
* As small as 3.15m turning radius enables the machine to work in narrow space.
* 48V and 420Ah large-capacity battery makes the cruising ability longer.
* Advanced AC motor driven technologies; steering differential control technologies; powerful and steady actions; grade ability up to 30%
* DC pump and proportional control technologies are energy-saving and effective, making the work steadier and safer.
* Environment friendly, zero emission, low noise, traceless traveling, suitable for indoor construction.

Product Parameters
ItemParameter
Parameters of running state
Overall dimensions (L × W × H)6.42×1.75×2 m
Working platform overall dimensions1.4×0.7×1.15 m
Max. speed5.2 km/h
Max. gradeability≥30%
Min. external turning radius ≤3.15 m
Ground clearance/m (centre)0.21 m
Wheelbase2 m
Total mass6500 kg
Main Operation Performance Parameters
Rated working height15.5 m
Max. platform height13.8 m
Max. working range 8 m
Max. net spanning height7.03 m
Scope of luffing of No. 1 arm0°~60°
Scope of luffing of No. 2 arm-8°~75°
Scope of crank arm luffing-60°~80°
Scope of platform swing160°
Slewing angle355°
Slewing radius of turntable 0.875 m
Max. load capacity 227 kg
Max. rearward slewing0 m
Control system12V DC proportional control
Tire250-15 solid tire, optional foam tire 240/55 D17.5
Power parameters
Power source420 Ah/48 V DC
Power unit4 kw/48 V DC
Auxiliary power unit2.2 kw/24 V DC
Traveling motor3.3 kw/32 V AC

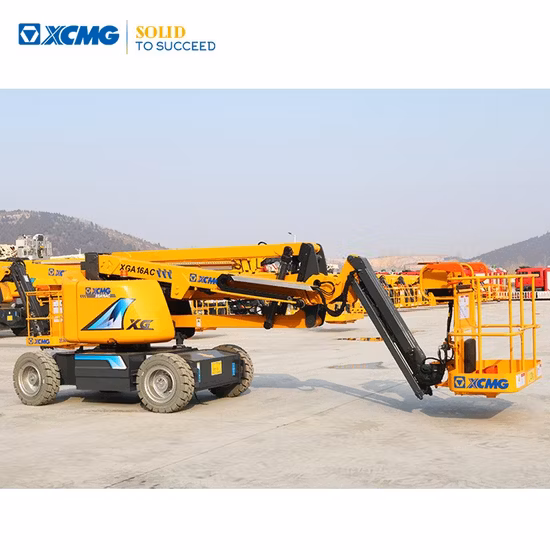

Product Picture

XCMG 16m Articulated Boom Lift Xga16AC Electric Aerial Work Platform


Company Profile

XCMG 16m Articulated Boom Lift Xga16AC Electric Aerial Work Platform

XCMG 16m Articulated Boom Lift Xga16AC Electric Aerial Work Platform

XCMG 16m Articulated Boom Lift Xga16AC Electric Aerial Work Platform


FAQ


1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.3: What about the delivery time?
A: 7-30 days after receiving the deposit.4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
